FS-Th9X has revolutionized the way people experience RC, and now this radio transmitter can stand up to the top competitions.
AFHDS (automatic frequency hopping digital system), is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home. The system is specially developed for all the Radio control models, that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years, FLYSKY AFHDS is now considered to be the one of the best systems available in the market.

2.4GHz is the standard of new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any 'noise' generated by the other electronic components on your helicopter - such as the brushless motor, Electronic speed controller, Servos and any metal to metal noise - eliminating interference and glitching that can affect traditional frequency system.

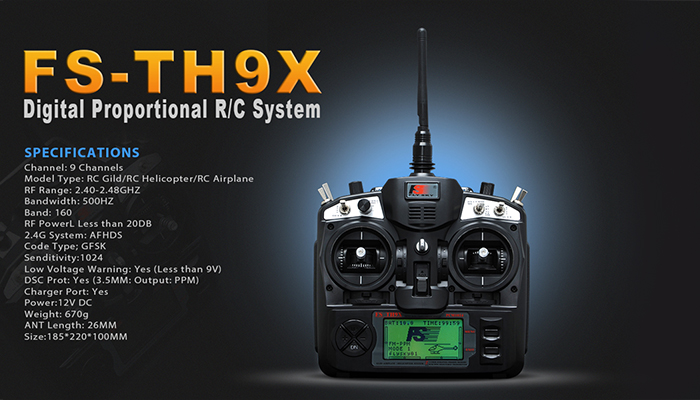

FS TH9X 2.4GHz 9 Channel RC Helicopter/Plane Transmitter Specifications

Click here to download the FS-TH9X Manual.

How to bind the RX (receiver) to the TX (transmitter):

1.  Plug bind plug into BAT, turn on plane/heli, the LED light should flash (make sure power is connected to RX via ESC)
2.  Hold down bind button on transmitter module while turning on the TX
3.  The light should go steady now
4.  Let go of bind button, turn off plane/heli, remove bind plug, turn off TX
5.  Turn on TX and then turn on plane/heli

Specifications：

(1)、channels: 9channels TH9X
(2)、model type: helicopter ,airplane, glider
(3)、RF power: less than 20db;
(4)、modulation: GFSK;
(5)、code type: PPM/PCM;
(6)、sensitivity: 1024;
(7)、lcd type: 128*64 dot;
(8)、low voltage warning: yes;
(9)、DSC port: yes;
(10)、charger port: yes;
(11)、power:12VDC(1.5AA*8);
(12)、weight:680g;
(13)、ANT length:26mm;
(14)、size:190*80*240mm;

Included in the box:

Transmitter
8CH receiver R8B
Binding plug
Manual

The radio can do:

Throttle curves
Pitch curves
Endpoint adjustments
Subtrim
Swash AFR mixes
Servo reversing
Timer
Dual rate
Exponential
Flaperons
V-Tail mixing
Elevons

Download Manual Click Here
